- Size: 18
- Place of Origin: China
- Brand Name: Huatong
- Model Number: QT4-15
- Weight: 5000.000 kg
- :
- :
- :
- :

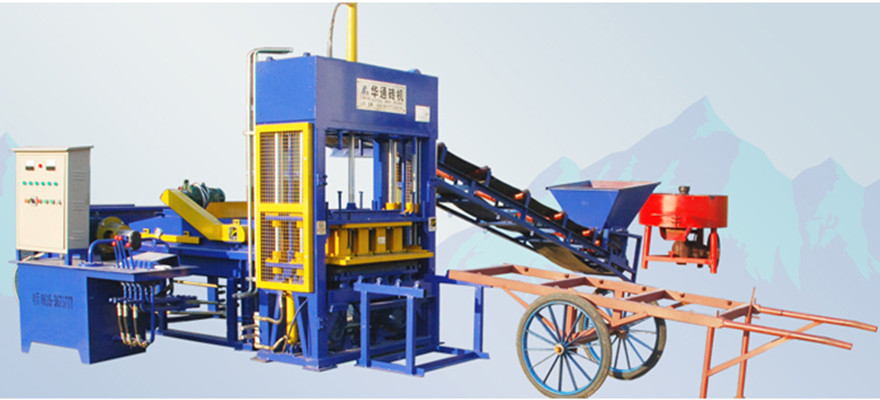

Characteristics of concrete block making machine:
Multifuctions:The machine can be used to make different products with different moulds,like hollow blocks,solid bricks,pavers,Kurbstones and so on.
Power-saving:when the machine is working,only the host machine is always be on,other parts only works at regular intervals.
Quick speed:The under-part and upper-part of mould inserts and pulls out quickly with high-powered hydraulic pump.Meanwhile,all the processes like moulding materials into blocks and preparing materials are finished at the same time.And the pallets moving is quick.
Easy operation:The host machine is operated by one person,and other processes will be completed automatically by electronics.Because pressure of viberating is high,the materials needs less water.So the machine still can work under low temperature.
High quality of mould:Mould is an important part of machine.The steel is standard materials for making moulds.We have many procedures like adding carbon and boron,back fire for three times, polishing,and so on.And the geomitry of the moulds is standard too.
Specifications of concrete block making machine:
Main Technical Specifications
Standard
JC/T920-2003
Vibration Frenquency
3500 cycles/minute
Vibration Pressure
70KN
Production/mould
Hollow Block (390x190x190mm) 4 Pics /mould
Solid Brick (240×115×53 mm)28 Pics/mould
Hollow Block (240X115X90mm) 14 Pics/mould
Paving Block(200×100×60mm)16 Pics/mould
Cycle Time
16-25seconds
Production/day(8hours)
Hollow Block (390x190x190mm) 4600-5000 Pics
Solid Brick (240×115×53mm) 40000-46000Pics
Hollow Block (240X115X90mm) 16200-17500 Pics
Paving Block (200×100×60 mm) 18000-20000Pics
Motor Power
18.5Kw
Water Consumption
4-8T
Number of workers
8-10workers
Space of Ground
3000square meters
Gross Weight
4T
Machine Dimension
2900×1600×2200mm
Main materials
Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes
Products of machine
Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on.
- Size: 18
- Place of Origin: China
- Brand Name: Huatong
- Model Number: QT4-15
- Weight: 5000.000 kg
- :
- :
- :
- :
Specifications of concrete block making machine:
Main Technical Specifications | |
Standard | JC/T920-2003 |
Vibration Frenquency | 3500 cycles/minute |
Vibration Pressure | 70KN |
Production/mould | Hollow Block (390x190x190mm) 4 Pics /mould |
Solid Brick (240×115×53 mm)28 Pics/mould | |
Hollow Block (240X115X90mm) 14 Pics/mould | |
Paving Block(200×100×60mm)16 Pics/mould | |
Cycle Time | 16-25seconds |
Production/day(8hours) | Hollow Block (390x190x190mm) 4600-5000 Pics |
Solid Brick (240×115×53mm) 40000-46000Pics | |
Hollow Block (240X115X90mm) 16200-17500 Pics | |
Paving Block (200×100×60 mm) 18000-20000Pics | |
Motor Power | 18.5Kw |
Water Consumption | 4-8T |
Number of workers | 8-10workers |
Space of Ground | 3000square meters |
Gross Weight | 4T |
Machine Dimension | 2900×1600×2200mm |
Main materials | Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes |
Products of machine | Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on. |
