- Size: 25
- Place of Origin: China
- Brand Name: Huatong
- Model Number: QT5-15
- Weight: 7000.000 kg

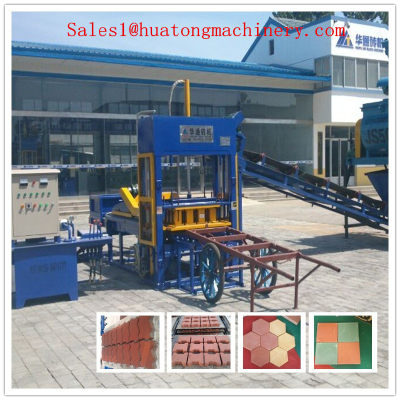

Main Technical Specification of cement brick machine
Main Technical Specifications | ||
Standard | JC/T920-2003 | |
Vibration Frenquency | 4500 r/min | |
Vibration Pressure | 70KN | |
Motors Specification | Vibration Motor(kw) | 4x2 |
Hydraulic Motor(kw) | 7.5 | |
Concrete Feeder Motor(kw) | 4.0 | |
Belt Conveyor (kw) | 2.2 | |
Production/mould | Hollow block (390x190x190mm) 5 Pics/mould | |
Hollow block(245×115×90mm) 16Pics/mould | ||
Solid brick (240×115×53 mm)32 Pics/mould | ||
Paver brick(200×100×60mm)18Pics/mould | ||
Cycle Time | 16-25seconds | |
Production/day(8hours) | Hollow Block(390×190×190 mm) 5800-6300 Pics | |
Hollow Block (240×115×90mm) 18500-20000Pics | ||
Solid Brick (240×115×53mm) 45000-57000Pics | ||
Paver Brick (200×100×60mm) 21000-23000Pics | ||
Motor Power | 24.7Kw | |
Water Consumption | 4-8T | |
Number of workers | 8-10worker | |
Space of Ground | 3300 square meter | |
Gross Weight | 6T | |
Machine Dimension | 3000×1900×2930mm | |
Main materials | Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes | |
Products of machine | Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on. |

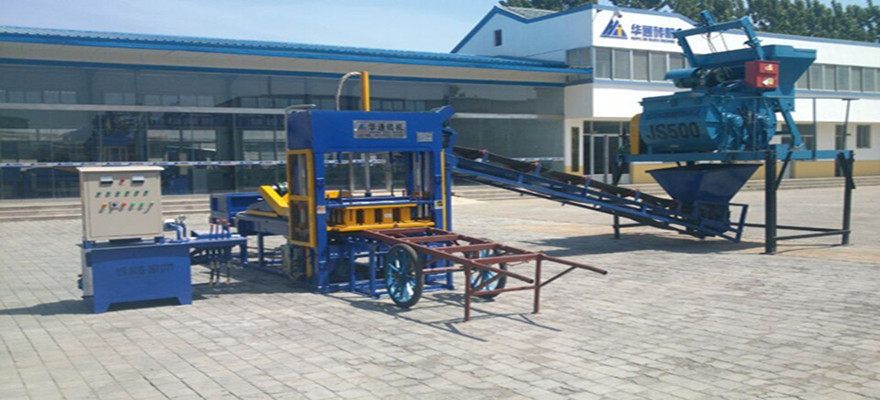

Characteristic of cement brick machine
QT5-15semi-automatic is the cllasic one of our machine,which has about 10 years history.It is simple,strong and easy to operate.This kind of machine has the following advantages:
1.Multifuctions:The machine can be used to make different products with different moulds,like hollow blocks,solid bricks,pavers,Kurbstones and so on.
2.Power-saving:when the machine is working,only the host machine is always be on,other parts only works at regular intervals.
3.Quick speed:The under-part and upper-part of mould inserts and pulls out quickly with high-powered hydraulic pump.Meanwhile,all the processes like moulding materials into blocks and preparing materials are finished at the same time.And the pallets moving is quick.
4.Easy operation:The host machine is operated by one person,and other processes will be completed automatically by electronics.Because the pressure of viberating is high,the materials needs less water.So the machine still can work under low temperature.
5.High quality of mould:Mould is an important part of machine.The steel is standard materials for making moulds.We have many procedures like adding carbon and boron,back fire for three times, polishing,and so on.And the geomitry of the moulds is standard too.
