- Size: 45
- Place of Origin: China
- Brand Name: Huatong
- Model Number: QT8-15
- Weight: 12000.000 kg

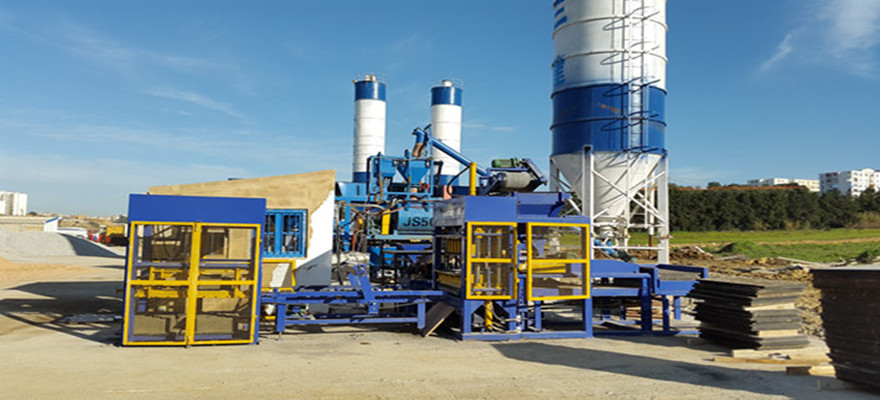

Main Features: Automatic concrete Brick /cement block paving machine QT8-15
♦ 1. The machine is made of super-strong steel with special welding techniques. The machine is highly firm
and shake-resistant.
♦ 2. New Design: The balance system adopts four-pole guarding way with extended bush to guarantee the
exact movement of mould. Gear and shaft balance system can make male and female mould move stably.
♦ 3. The way of feeding is revolving, convective and compulsive to ensure block density and reduce feeding
cycle. Gear driving mode of feeding is more steady. Feeder moving is two curved arms drived by two
cylinders, which makes feeder move quickly, durably and steady.
♦ 4. Stacker is controled by frequency conversion to adjust speed. The movement of stacker is flexible and
steady.
♦ 5. The moulds, gears, and shafts have heat treatments of quenching, tempering, carburing and so on in order
to guarantee block machine duration.The switches and electronic use CHNT and Omron brand.
♦ 6. The hydraulic system adopts proportion direction valve. The valve can adjust flow rate and buffer cylinder.
Therefore, it can protect cylinder and extend life, making operation steadily and quickly.
♦ 7. The vibration system adopts frequency conversion technique. The assembly is oil immersed vibration. This
improve high speed loading and makes concrete liquefied and air-outed. The five advantages is vibration
assembly synchronization, soft starter, densify block, electric saving and quick moulding.
♦ 8. High Automatic level: Using Japanese Omron sensor as signal source and Germany Siements PLC as
central processing unit to make oil system, air system,electric system and machanical system to be one
part. The plant can work automatically and cyclically. There are fault diagnosis, problem alarming
by safty logical control. The screen will show fault and methods to client if there is any problem.
♦ 9. Waste-Recycle: The raw materials could be sand, stones and so on. The blocks made by our machine is
high density, low weight, low cost.
Specification ofAutomatic concrete Brick /cement block paving machine QT8-15
Main Technical Specifications | |
Standard | JC/T920-2003 |
Vibration Frequency | 3600 cycles/minute |
Vibration Pressure | 75KN |
Production/mould | Hollow block(400X150X200mm) 10Pics/mould |
Hollow block(245X115X90mm) 21Pics/mould | |
Solid brick (240X115X53 mm) 32 Pics/mould | |
Paver brick(200X100X60mm) 24Pics/mould | |
Cycle Time | 15-25seconds |
Production/day(8hours) | Hollow block (400×150×200 mm) 10000-14000 Pics |
Hollow block (245×115×90 mm) 24000-26000 Pics | |
Solid brick (240×115×53mm) 60000-70000Pics | |
Paver brick (200×100×60 mm) 27000-30000Pics | |
Motor Power | 29.4Kw |
Water Consumption | 5-10T |
Number of workers | 7-10worker |
Space of Ground | 5200m2 |
Gross Weight | 10.2T |
Machine Dimension | 5400×1960×3050mm |
Main materials | Cement, crushed stone dust, gravel, sand, coal fly ash, iron/aluminium dust, crushed cinder and some industrial wastes |
Products of machine | Hollow blocks, Solid bricks, Pavers, Kurbstones, Slope blocks, slabs, interlock bricks and so on. |
